IBC

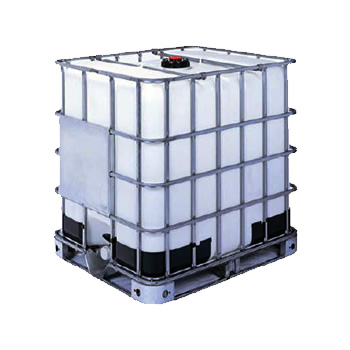

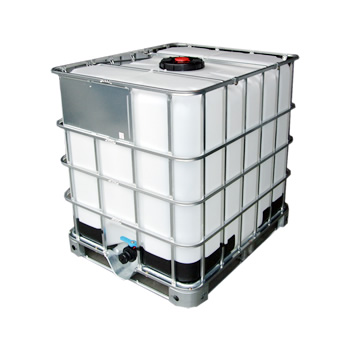

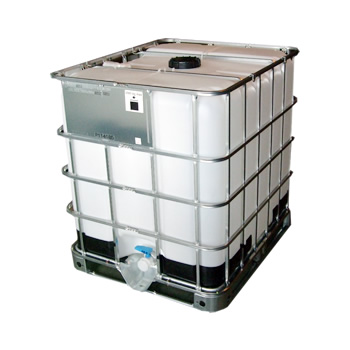

Power Tote P / IBC-1000D
Power Tote P effective for space saving, highly efficient transportation, and filling efficiency improvement.
It allows safe and low-cost transportation of chemicals as well as foods.
It meets the requirement of hazardous material container of IMDG code to allow domestic and international transportation.
Its raw material includes ultra-high-molecular-weight high-density polyethylene, which provides excellent chemical resistance and impact strength.
It meets the requirement of hazardous material container of IMDG code to allow domestic and international transportation.
Its raw material includes ultra-high-molecular-weight high-density polyethylene, which provides excellent chemical resistance and impact strength.
IBC (Intermediate Bulk Container)
IMDG code (International Maritime Dangerous Goods Code)
IMDG code (International Maritime Dangerous Goods Code)
| Model | Filling opening （mm） |
Outlet （mm） |
Width （mm） |
Depth （mm） |
Height （mm） |
Capacity （L） |
Product weight （㎏） |
UN |
|---|---|---|---|---|---|---|---|---|
| IBC-1000D | ø150 | ø50 | 1,000 | 1,200 | 1,149 | 1,050 | 62 | ○ |
| IBC-1000D | ø240 | ø50 | 1,000 | 1,200 | 1,149 | 1,050 | 62 |

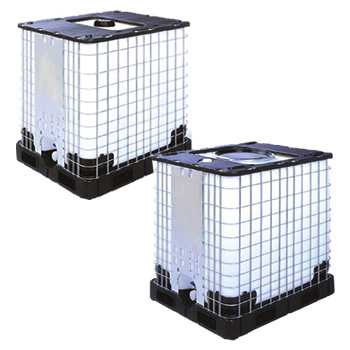

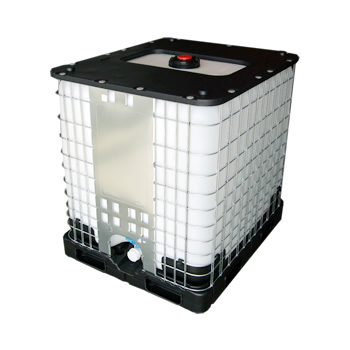

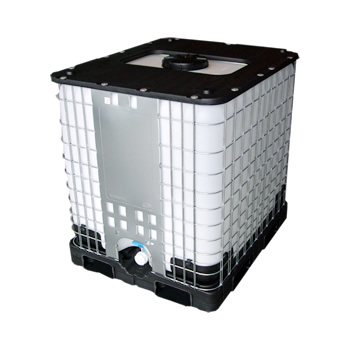

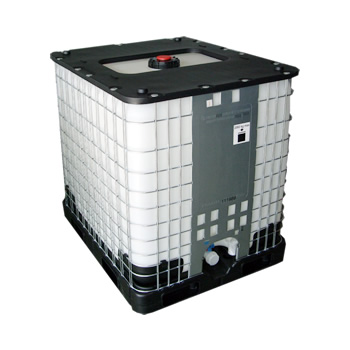

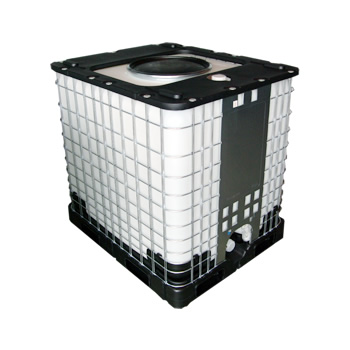

Power Tote / IBC-1000B・IBC-1000C
Power Tote to meet customers' demands with various options.
Steel mesh outer frame guarantees the strength of containers, which comply with the UN-certification mark.
It is applicable for a wide range of chemicals with SUS specifications for its outer frame focusing on strength. We offer products with filling opening size ranging from ø150, ø240, and ø450.

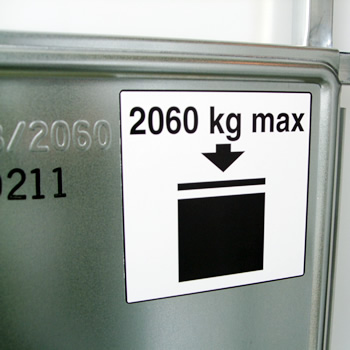

Ultra-high-molecular-weight high-density polyethylene is used for the top panel, which gives excellent strength against stacking and inner pressure.
It is applicable for a wide range of chemicals with SUS specifications for its outer frame focusing on strength. We offer products with filling opening size ranging from ø150, ø240, and ø450.
Ultra-high-molecular-weight high-density polyethylene is used for the top panel, which gives excellent strength against stacking and inner pressure.
| Model | Filling opening （mm） |
Outlet （mm） |
Width （mm） |
Depth （mm） |
Height （mm） |
Capacity （L） |
Product weight （㎏） |
UN |
|---|---|---|---|---|---|---|---|---|
| IBC-1000B | ø150 | ø50 | 1,000 | 1,200 | 1,160 | 1,050 | 81 | ○ |
| IBC-1000B | ø240 | ø50 | 1,000 | 1,200 | 1,160 | 1,050 | 81 | |
| IBC-1000C | ø450 | ø50 | 1,000 | 1,200 | 1,160 | 1,050 | 82 |
Discharging valve
| Product name/Model | Gasket | |||
|---|---|---|---|---|
| EPDM | VITON | Acid proof VITON | EPDM Silicon oilless | |
 Plunger valve / AN-1004 |
 Blue |
 Black |
 Red |
 Green |
 Cam lock style plunger valve /AN-1005 |
Blue |
Black |
Red |
Green |
 Ball valve 50A / AN-1006 |
 Blue |
 Black |
 Red |
|
Filling opening cap / optional part
| Filling opening | Airtight stopper type | Degasification type | Band style |
|---|---|---|---|
 ø150 |
 |
 |
|
 ø240 |
 |
 |
|
 ø450 |
 |
| 40A adapter | 50A adapter | Cam lock coupler | Cam lock coupler | Dust cap |
|---|---|---|---|---|
 |
 |
 |
 |
 |
Efficiency improvement

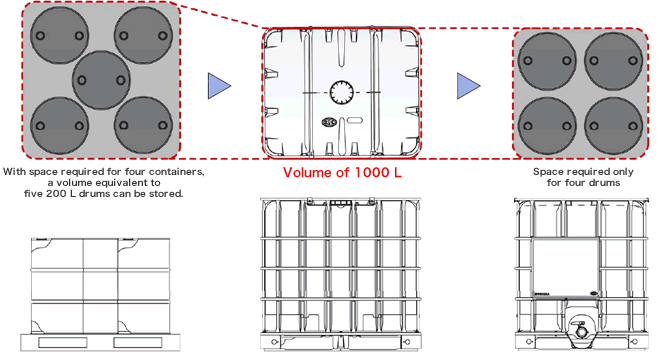

Highly efficient use of space
With space required for four containers, a volume equivalent to five 200L drums can be stored.
It allows you to save 35% of storage space.
It allows you to save 35% of storage space.

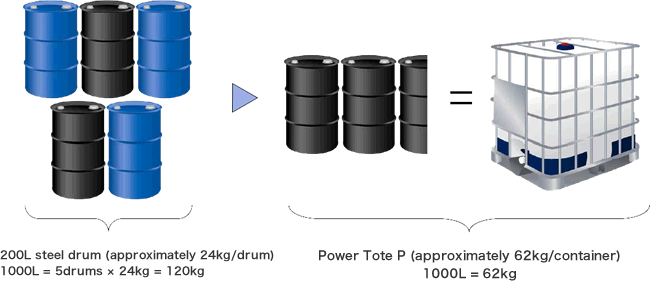

Container weight is approximately half of 5-pc of steel drums
Power Tote P is light weight with its main unit weighing approximately 62kg
This is about half of five steel drum cans. This container contributes to both efficient cargo handling and transportation.
This is about half of five steel drum cans. This container contributes to both efficient cargo handling and transportation.
