Hyper Pure Bottle
Highly durable and clean multilayer bottle
The Hyper Pure Bottle is a high-quality, precision-engineered, multifunctional container, developed using advanced molding technology for storing high-purity chemicals used in semiconductor manufacturing. We have designed seven-layer structures using our proprietary technology. The middle layer features a gas barrier function, resulting in a highly durable and clean multilayer bottle.

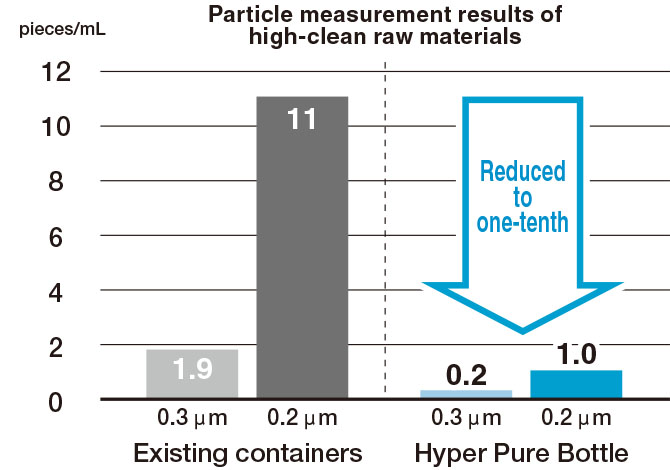

By collaborating with a raw material manufacturer to develop high-clean raw materials free of additives, we were able to create a completely new container. It contains one-tenth or fewer particles compared to conventional clean raw materials. Additionally, metal elution, a concern with electronic chemicals, is minimized, ensuring safe usage.

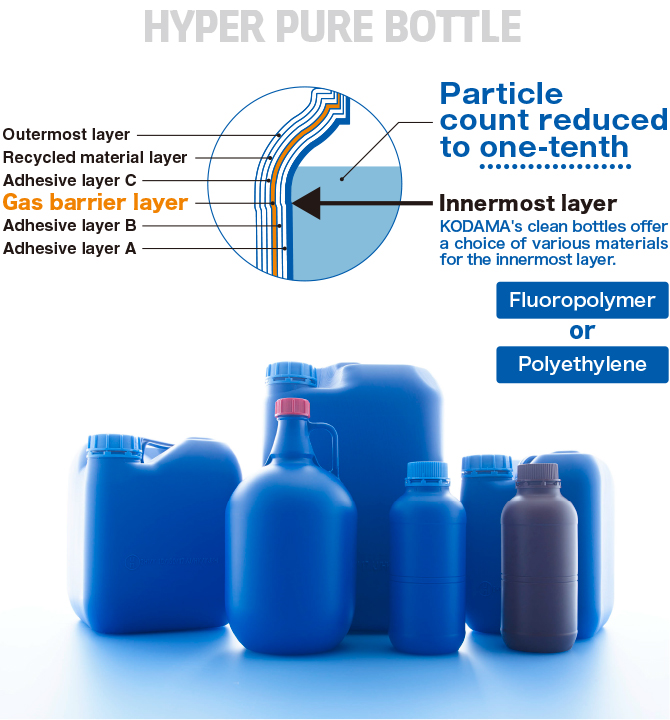

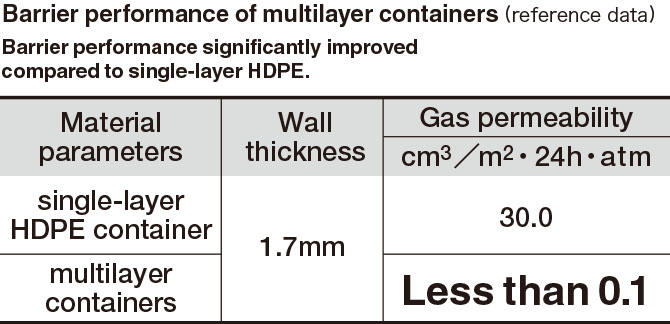

Multilayer containers (barrier containers)
By using a clean resin for the innermost layer and incorporating a barrier layer in the middle, we have developed a clean, multilayer container with a high barrier that minimizes gas permeation of chemicals. The innermost layer material can now be selected, enabling the storage of chemicals that cannot be kept in conventional polyethylene containers.

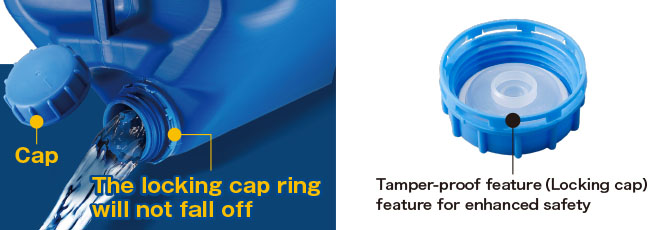

Tamper-proof feature
On par with a semiconductor manufacturing plant

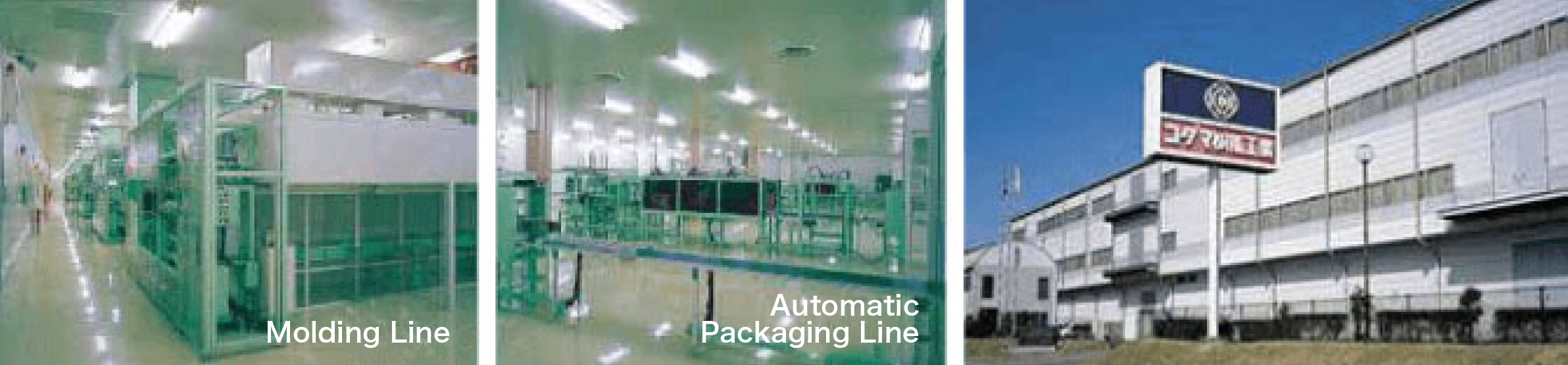

A Plant with a Class 100 cleanroom
FSSC22000、ISO9001、ISO14001、OHSAS18001、
Resilience Certification
The Ikeda Plant is the industry's first blow molding facility with a Class 100 manufacturing environment dedicated exclusively to producing clean containers. As a Class 100 facility, equivalent to a semiconductor manufacturing plant, we provide high-clean containers through our integrated production line, from molding to packaging, all designed to maintain strict cleanliness.
Features
Products manufactured at the Ikeda Plant are produced in a clean environment, eliminating the risk of contamination and reducing costs by eliminating the need for post-production cleaning.
Specification
| Type | Capacity （L） |
Main unit dimension （mm） |
Opning dimension （mm） |
Color | UN | Quantity per package |
|---|---|---|---|---|---|---|

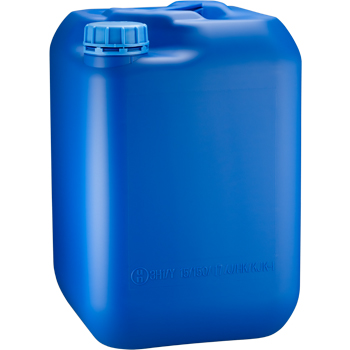

| KK-116-6 | 20 | 265x265xH395 | ø50 | blue | ○ | 4 |

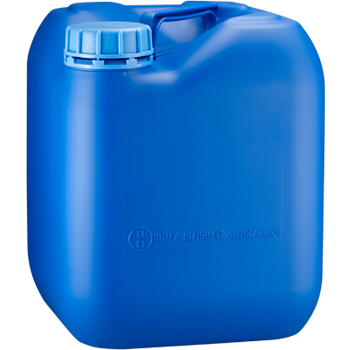

| KM-331-2 | 10 | 230x230xH280 | ø50 | blue | ○ | 4 |

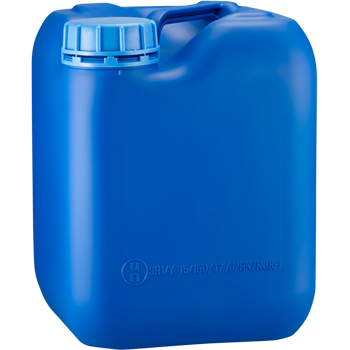

| KN-453 | 7 | 200x200xH258 | ø50 | blue | ○ | 4 |

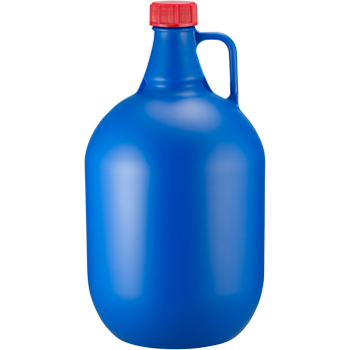

| KX-524 | 4 | ø168xH312 | ø27 | blue | - | 10 |

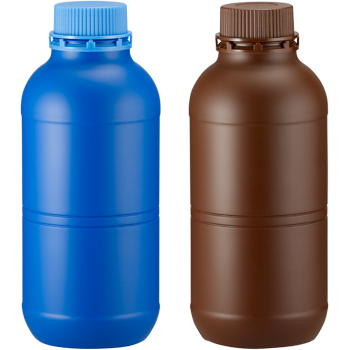

| KY-672-1 | 1 | ø97xH232 | ø33.7 | blue・brown | - | 50 |
