Drum

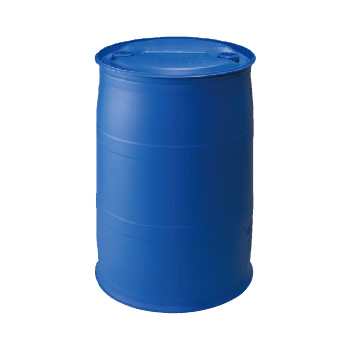

Power drum / PL series

Power drum / PL series
By pursuing lightweightedness, practicality, and efficiency, KODAMA’s plastic drum meets the demands of one-way containers.
1． We worked with raw material manufacturers to develop our high-impact and high-strength original raw material grade, thus realizing Japan's lightest 8.5 kg plastic drum.
2． Single-type L ring located only on the top side.
3． Label frame on the top surface
4． Slant opening on the top surface for drainage improvement
5． An indention on the bottom surface for the hands for improved handling.
Download PDF catalog
  • PL-200-JW
  • PL-220-DW
  • PL-200-LW
  • PL-200-MW
  • Dip tube specification
Type Capacity
（L）		 Body diameter
（mm）		 Total height
（mm）		 Weight
（Kg）		 Opening inner diameter
（mm）		 Color UN specifications
PL-100-AW 100 ø474 725 6.5 ø58/ø24.4 BlueGrey 1H1/Y1.9/110
PL-200-AW 200 ø580 910 10.5/12.5 ø58 BlueGreyNatural 1H1/Y1.9/200
PL-200-BW 200 ø580 907 10.5 ø58 BlueGrey 1H1/Y1.9/200
PL-200-CW 200 ø576 900 10.5/12.5 ø58 BlueGreyNatural 1H1/Y1.9/200
PL-220-DW 220 ø585 935 9.5 ø51.8 BlueGrey 1H1/Y1.5/150
PL-200-JW 200 ø576 900 8.5 ø57.5 Blue 1H1/Y1.9/200
9.5 1H1/Y1.5/200
PL-200-KW 200 ø576 935 9.5 ø59.4 Blue 1H1/Y1.5/150
PL-200-LW 200 ø576 900 10.5 ø57.5 Blue 1H1/Y1.9/200
PL-200-MW 200 ø576 928 14.0 ø57.5 Blue 1H1/Z /320
PL-200-MW-1 200 ø576 928 14.0 ø57.5 Blue 1H1/Z /320
PL-200-NW 200 ø576 900 9.5 ø58 Grey 1H1/Y1.5/150
PL-200-NW-2 200 ø576 900 9.5 ø58 Sky blue 1H1/Y1.5/150
PA-200-AW 210 ø586 904 12.0 ø58 Blue 1H1/Y1.9/200
Back to top

Chemical drum / PS series

Chemical drum / PS series
Classic type of composite packaging
The exterior protected by JIS compliant steel drum and the interior holds HDPE liner with excellent chemical resistance.
You can select from a wide range of products from 20 L to 200 L to meet your requirement.
Download PDF catalog
  • PS-200-AW
  • PS-200-DW
  • PS-60-A
  • PS-20-A
  • PSO-200
Type Capacity
（L）		 Body diameter
（mm）		 Total height
（mm）		 Weight
（Kg）		 Opening inner diameter
（mm）		 Color UN specifications
PS-20-A 20 ø289 414 2.9 ø38.5 Blue 6HA1/X1.4/250
PS-60-A 60 ø390 585 6.0/9.5 ø49.5 Green 6HA1/X /250
PS-100-AW 100 ø440 770 14.1 ø58.6/ø24 Black 6HA1/Y1.5/150
PS-100-AW-1 100 ø440 770 14.1 ø49.5 Black 6HA1/Y1.4/250
PS-200-AW 200 Maximum
ø585		 890 24.5 ø58.6/ø24 Black 6HA1/Y1.5/150
PS-200-R-AW 200 Maximum
ø585		 890 24.5 ø58.6/ø24 Black 6HA1/Y1.5/150
PS-200-DW 200 Maximum
ø585		 890 24.5 ø49.5 Black 6HA1/X1.4/300
PS-200-R-DW 200 Maximum
ø585		 890 24.5 ø49.5 Black 6HA1/X    /250
PSO-200 200 Maximum
ø585		 890 25.1 ø564 BlackGreen -
PS-200-OP 200 Maximum
ø585		 890 26.7 ø58.6/ø24 BlackBlue 6HA1/Y1.5/150
Back to top

Power drum / POM series

POM-200
Open top style to achieve rationalization of logistics.
We offer functional open-top style in various sizes from 30 L to 220 L. The container with its original airproof structure ensures its air tightness with the flange on the top of its body absorbing excess load on the gasket.
This is useful for transportation / storage of industrial chemicals, paint, food, medical and agricultural products in emulsion/powder/solid form.
Download PDF catalog
  • POM-220
  • POM-120
  • POM-100
  • POM-60
  • POM-30
Type Capacity
（L）		 Body diameter
（mm）		 Total height
（mm）		 Weight
（Kg）		 Opening inner diameter
（mm）		 Color UN specifications
POM-30 30 ø313 498 2.7 ø255 Blue 1H2/X31/S
POM-60 60 ø398 618 3.5 ø327 Blue 1H2/Y90/S
POM-100 100 ø460 728 6.0 ø398 Blue 1H2/X150/S
POM-120 120 ø486 793 6.2 ø394 Blue 1H2/X230/S
POM-200 200 ø586 882 11.5 ø521 Blue 1H2/X230/S
POM-220 220 ø586 978 10.0 ø469 Blue 1H2/X280/S
