Industrial chemical bottle

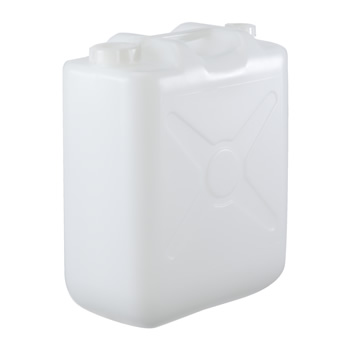

20L Square jerrican
A variety of UN approved product lineup
Our products have wide fields of application such as industrial chemicals, paint, food, medical, and agricultural products. We offer high-quality products that are most appropriate to customers' filling goods and market environment.
・ | We provide various UN approved products that meet the international container inspection standards. |
---|---|
・ | We allow dispersion of supply risk, because we have a number of production sites and molding dies in Japan. |
・ | Stable supply of products with national top-class production capacity. |
Product name | Capacity | Main unit dimension (mm) |
Opening inner diameter (mm) |
UN-specification mark | Quantity per package |
---|---|---|---|---|---|
KK-101 | 20L | W275×L275×H375 | ø52 | - | 4 |
KK-116-8 | 20L | W265×L265×H395 | ø50 | 3H1/Y1.8/320 3H1/Y1.8/200 |
4 |
KK-116-5 | 20L | W265×L265×H395 | ø50 | 3H1/Y1.9/200 | 4 |
KK-117 | 20L | W269×L269×H375 | ø40×ø14 (Double-opening) |
3H1/Y1.9/250 | 4 |
KK-124 | 20L | W270×L270×H395 | ø50 | - | 4 |
KK-142 | 20L | W270×L270×H395 | ø50 | 3H1/Y1.9/200 | 4 |
KK-140 | 19L | W270×L270×H351 | ø50 | 3H1/Y1.9/200 | 4 |
KK-137 | 16L | W270×L270×H330 | ø50 | 3H1/Y1.9/150 | 4 |
KK-129 | 15L | W270×L270×H315 | ø50 | 3H1/Y1.9/150 | 4 |
KM-324 | 13L | W265×L265×H288 | ø50 | 3H1/Y1.9/150 | 4 |
20L Flattened jerrican
We provide a more functional container with great space saving and easy handling.
Blow molded container with excellent chemical resistance using high-density polyethylene. You can select a container that best suits your market environment, work environment, and content.
・ | Gurgle-proof mechanism to prevent splash of filling goods. |
---|---|
・ | With durability for stacking load. |
Product name | Capacity | Main unit dimension (mm) |
Opening inner diameter (mm) |
UN-specification mark | Quantity per package |
---|---|---|---|---|---|
KH-270 | 20L | W249×L300×H408 | ø50 | 3H1/Y1.9/200 | 4 |
KH-230 | 20L | W253×L290×H443 | ø50 | 3H1/Y1.5/200 | 4 |
KH-209 | 20L | W190×L350×H425 | ø50 | - | 5 |
KH-203 | 20L | W202×L343×H406 | ø107 | - | 5 |
KH-212 | 20L | W190×L350×H420 | ø50×ø29 (Double-opening) |
- | 5 |
KH-244 | 20L | W253×L290×H395 | ø50 | 3H1/Y1.9/320 3H1/Y1.9/200 |
4 |
KH-264 | 20L | W190×L350×H435 | ø50 | - | 5 |
KH-242 | 19L | W180×L350×H362 | ø50 | - | 5 |
KH-225 | 13L | W170×L318×H318 | ø40×ø14 (Double-opening) |
- | 5 |
10L
Blow molded container with excellent chemical resistance using high-density polyethylene.
It is a reliable product manufactured with our highly advanced molding technology and know-how that we have accumulated over many years. We produce our products based on a strict quality standard in the plants certified according to ISO9001.
・ | We propose the most appropriate grade for your requested function according to the required content protection level. |
---|---|
・ | We deliver high-quality products with our integrated system of production, which starts from the selection of raw material. |
Product name | Capacity | Main unit dimension (mm) |
Opening inner diameter (mm) |
UN-specification mark | Quantity per package |
---|---|---|---|---|---|
KM-346 | 10L | W200×L263×H338 | ø50 | 3H1/Y2.1/200 | 4 |
KM-331 | 10L | W230×L230×H290 | ø50 | 3H1/Y2.1/200 | 4 |
KM-331-1 | 10L | W230×L230×H290 | ø50 | 3H1/Y2.1/200 | 4 |
KM-237 | 10L | W190×L270×H320 | ø40 | - | 5 |
KM-301 | 10L | W190×L250×H298 | ø40 | - | 10 |
KM-343 | 10L | W190×L250×H308 | ø40×ø14 (Double-opening) |
- | 10 |
KM-304 | 10L | W175×L250×H290 | ø50 | - | 10 |
Small-size bottle
You can select the best suited container from a wide range of products with various shapes and capacity levels.
We can offer containers that suit your request, because we own a number of small dies for containers ranging from 100ml to 5L.
KODAMA's reliable small-size container lineup manufactured in ISO9001 certified plant.
KODAMA's reliable small-size container lineup manufactured in ISO9001 certified plant.
・ | Our products are highly versatile and we offer the most suitable product for your required function. |
---|---|
・ | We deliver high-quality products with our integrated system of production, which starts from the selection of raw material. |
Product name | Capacity | Main unit dimension (mm) |
Opening inner diameter (mm) |
UN-specification mark | Quantity per package |
---|---|---|---|---|---|
KN-446 | 6L | W142×L192×H295 | ø32 | 3H1/Y1.4/200 | 10 |
KN-446-1 | 6L | W142×L192×H295 | ø32 | 3H1/Y1.4/200 | 10 |
KN-401 | 5L | W135×L215×H232 | ø40 | - | 20 |
KN-403 | 5L | W140×L215×H230 | ø40×ø14 (Double-opening) |
- | 20 |
KN-421 | 5L | W150×L240×H272 | ø40 | - | 10 |
KX-502 | 4L | W105×L205×H270 | ø40 | - | 20 |
KX-524 | 4L | ø168×H312 | ø27 | - | 10 |
KY-601 | 2L | W83×L140×H230 | ø28 | - | 60 |
KY-609 | 1.3L | ø105×L210 | ø27.5 | - | 70 |
KY-610 | 1L | W70×L108×H178 | ø28 | - | 100 |
KY-636 | 1L | ø92.5×H216 | ø22.5 | - | 50 |
KY-636-2 | 1L | ø92.5×H216 | ø27 | - | 50 |
KZ-701 | 0.5L | ø74×H173 | ø23.8 | - | 150/70 |
KZ-707 | 0.25L | ø65×H135 | ø27.5 | - | 190 |
KZ-708 | 0.1L | ø50×H85 | ø27.5 | - | 400 |
